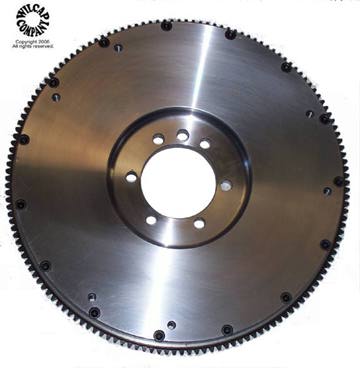

FLYWHEELS

We stock a line of automotive and marine flywheels and flexplates.

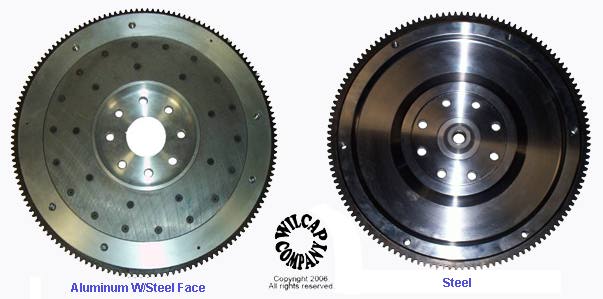

We can also duplicate just about any flywheel in aluminum

All of our flywheels are made from the finest material and are CNC machined.

Multiple pressure plate patterns, multi disk flywheels, and customs on request.

Engine Gear P.P.
Buick 53-56 180* 7
Buick 57-63 166 7
Buick 64-66. 166 7
Cadillac 49-53 145 7
Cadillac 54-60 176 7
Cadillac 61-64 166 7
Cadillac 65-Up 166 7
Chevrolet 55-86 168 4,7
Chevrolet 55-86 153 4
Chevrolet 6 153 4
Chrysler FH 6 146 7
Chrysler Early Hemi 172 7
Chrysler 273 122* 3
Chrysler 318 130 4,6
Chrysler 360 130 4,6
Chrysler Big Block 130 4,6
Chrysler Big Block 143 5
Chrysler 5.7 Hemi 130 4,6
Chrysler Slant 6 122 3
Ford 32-48 V8 112 3,6,7
Ford 49-53 V8 112 3,6,7
Ford 2.0 & 2.3 I4 132 2
Ford 240 & 300 I6 164 6
Ford 54-63 Y block 146* 6,7
Ford FE 153 7
Ford Small Block 164 6
Ford 460 180 7
Lincoln 52-57 152* 7
Oldsmobile 49-53 145 7
Oldsmobile 54-60 176 7
Oldsmobile 61-64 176 5,7
Oldsmobile 64-67 166 4,6
Pontiac 55-60 176 5
Pontiac 61-62 166 4
Pontiac 63-66 166 4
Pontiac 64- 67 166 4,5
Pontiac 68 - UP 166 4,5
Studebaker V8 53-55 133* 6

* Indicates ring gear no longer in production. Ring gear must be supplied by customer.

Note: All flywheels manufactured NEUTRAL BALANCE unless specified by the customer at the time the order is placed.

AVAILABLE CLUTCH PATTERNS (P.P.)

1. 8" Diaphragm

2. 8.5" Diaphragm

3. 9 1/8", 9 1/4", 9.5" B&B & Diaphragm

4. 10, 10.5, 10.95" B&B & Diaphragm

5. 11", 12" B&B & Diaphragm

6. 10", 10.5" Long & 10" B&B & Diaphragm

7. 11" Long & Diaphragm

8. 11.5", 12" Long & Diaphragm



Flywheel Ordering - Flywheels available to order on-line

Call if your flywheel is not listed


Clutch Kits and Special Disks

We supply any needed clutch parts with our kits and can do special clutch packages

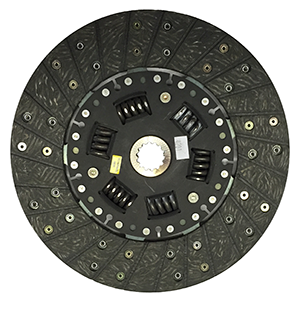

GM NWC T5 (1"-14 Spline) Disk with 1 piece hub offset towards transmission for clearance of flywheel bolts

B&B Pressure Plate and Disk for use with our 303 and 307 Bellhousings and Adapters

Clutches and Related Parts

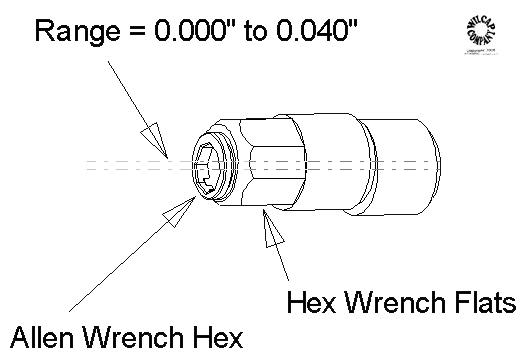

ALIGNMENT PINS ( Dowel Pins)

ADJUSTABLE ALIGNMENT PINS

AS SEEN IN "STREET RODDER"

These "Wilcap" designed and manufactured adjustable alignment pins allow .000" to .040" positive adjustment from one set of pins. Available in 1/2" (most Ford and Chrysler) and 5/8" (most GM).

Hardware and Related Parts

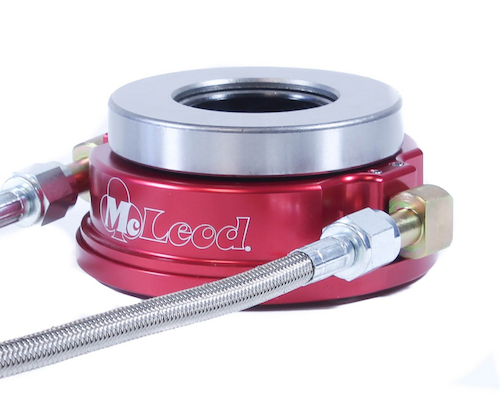

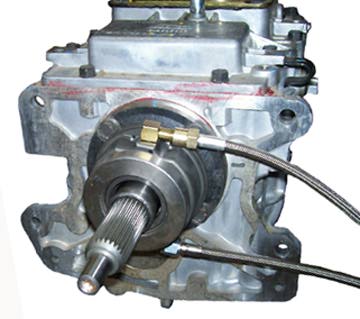

Hydraulic Throw Out Bearings

We sell McLeod Brand hydraulic throw out bearings. They offer a simple solution to almost any throw out bearing problem or work great as a dependable replacement for stock throw out bearing systems. They feature a screw adjustment that takes the work out of setting up the bearing.

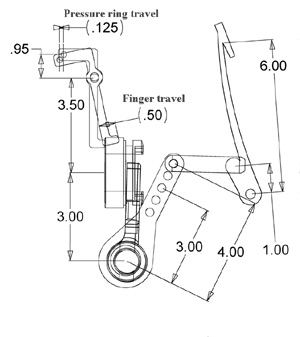

Early Ford and Mercury Throw Out Bearings and Linkage

Also Available are the stock replacement cross shafts, forks, bearings, bearing collars, etc.

Clutches and Related Parts


Starters

We can suplly the 12volt mini starters to go with any of our kits.

Starters and Related Parts


We can source other parts when needed;

Scattersheilds

Dust covers

Pressure plates, Clutch disks

And more.


T Shirts



Best Quality Cotton T Shirts

2 Designs

T shirts available Here
